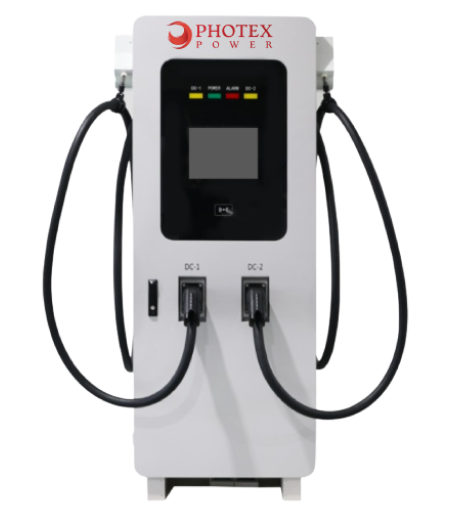

Model : MD-EU-60KW
Screen Size : 12 Inch
Rated current : 300A
Operating voltage : 1000V DC
Insulation resistance : >2000MΩ
Terminal temperature rise : <50K
Withstand voltage : 3200V
Waterproof degree : IP55
Contact impedance : 0.5MΩ Max
| Input Voltage: | 3-phase 400V ±15% AC | |
| Input Voltage Type: | TN-S (Three Phase Five Wire) | |
| Working Frequency: | 45~65Hz | |
| Power Factor: | ≥0.99 | |
| Efficiency: | ≥96% | |
| Rated Voltage: |
|
|
| Max. Output Current: |
|
|
| Display: | 12” LCD Touchscreen | |
| Language: | Chinese, English, French, German, Spanish, Russian, etc. | |
| Payment: | Mobile APP/RFID/POS | |
| Network Connection: | 4G(GSM or CDMA)/Ethernet | |
| Communication Protocols: | OCPP1.6J or OCPP2.0 | |
| Working Temperature: | -30°C ~ +55°C | |
| Storage Temperature: | -35°C ~ +55°C | |
| Operating Humidity: | ≤95% Non-Condensing | |
| Protection: | IP55 | |
| Acoustic Noise: | <60dB | |
| Cooling Method: | Forced Air-Cooling | |
| Dimension(W x D x H) | 700*1900*650mm |
| No. of Charging Cable |
|
| Cable Length | 5m or 7m |
| Certificate: | CE/IEC61851-1/IEC61851-23/IEC61851-21-2 | |
